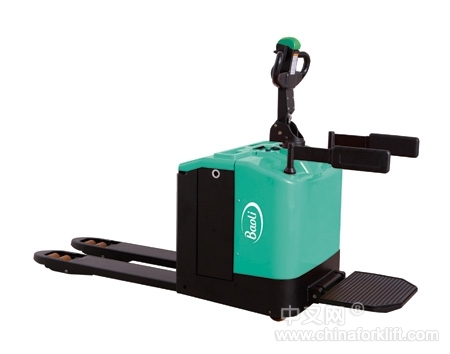

電動托盤堆垛車 |
制造商 Manufacturer | 凱傲寶驪 KION Baoli | |||
| 型號 Model | EP15-100 | EP20-130 | EP25-140 | ||
| 核定載重量 Load capacity | kg | 1500 | 2000 | 2500 | |
| 載荷中心距 Load center | mm | 600 | |||
| 駕駛方式 Operator type | 步行式Walkie | 步行式Walkie | 站架式Standing | ||
| 貨叉落地高度 Lowered fork height | mm | 85 | |||
| 貨叉外寬 Fork overall width | mm | 540/685 | |||
| 貨叉尺寸 Fork size | mm | 1150x160x44 | 1200x185x55 | 1200x185x55 | |
| 總長Overall length | mm | 1630 | 1750 | 1916 | |
| 總寬 Overall width | mm | 724 | 720 | 790 | |
| 最小轉彎半徑 Min turning radius | mm | 1400 | 1575 | 1746 | |
| 行駛速度 Travel speed | km/h | 3.5/4 | 4/4 | 5/5 | |
| 自重(不含蓄電池)Truck weight(without battery) | kg | 237 | 410 | 588 | |
| 軸距 Wheel base | mm | 1234 | 1390 | 1493 | |
| 蓄電池組 電壓/容量 Battery voltage,nominal capacity | V/Ah | 24/70 | 24/210 | 24/270 | |
| 驅動電機 Driver motor | KW | DC0.63 | AC1.5 | AC1.5 | |
| 起升電機 Lift motor | KW | DC0.8 | DC2.0 | DC2.0 | |
